Friedrich Breeze Series Ducted Mini Split Heat Pump

Breeze™ is the easiest way to upgrade from traditional ducted unitary HVAC
equipment to an efficient, inverter side discharge heat pump system.

UNIVERSAL COMPATIBILITY

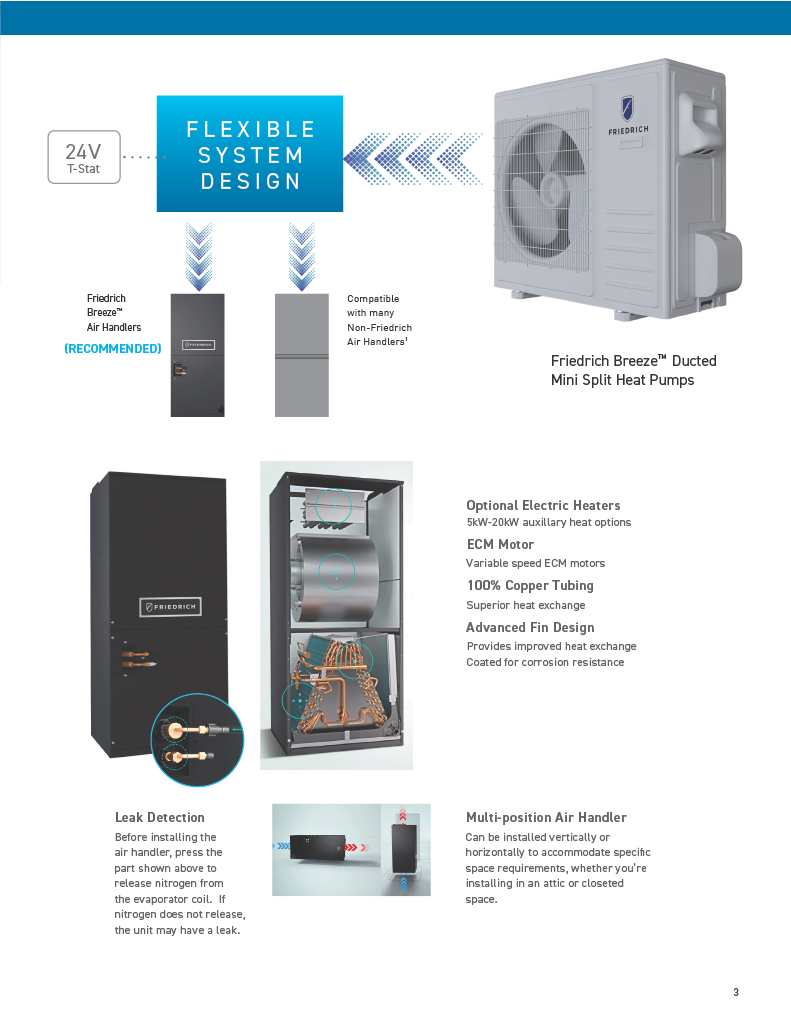

Friedrich Breeze™ Ducted Mini Split Heat Pump installs into existing ductwork and can be paired with an
existing gas-fired or electric furnace for retrofit applications. Or, install it with a matching Friedrich air
handler for a complete package. Breeze is also compatible with most 24V thermostats or BMS.

ACCOMODATES LONG PIPING RUNS

For even more installation flexibility, Breeze’s high-performance compressor accommodates long pipe runs,
and can be installed in sites with piping of up to 246 ft. and height differentials of up to 98 ft.

SPACE-SAVING SLIM DESIGN

Its ultra-compact design features a smaller footprint that requires less outdoor space, with 36% reduction
in volume and 40% reduction in footprint compared to traditional and top discharge outdoor units.

ENERGY SAVINGS

Precision Inverter® delivers efficiencies of up to 18.0 SEER2 and 9.5 HSPF2, all with cold climate operation.
Energy Star® Certified for Cold Climate models available. Eligible for many federal & local tax credit &
rebate incentives.

PRECISE TEMPERATURE CONTROL, BETTER COMFORT

The Precision Inverter® compressor ramps up quickly with Soft-Start™ technology to reach the indoor set
temperature, then maintains precise temperature control for perfect comfort.

LOW SOUND LEVELS INDOORS AND OUT

Superior sound insulation and precise engineering provide the ultra-quiet air
movement that are a Friedrich signature feature. Outdoors, the inverter-driven
side discharge unit provides a quieter, more enjoyable outdoor space.

OPERATES IN EXTREME TEMPERATURES

Operates in temperatures down to -13° F in heat pump mode, and will provide cooling in temperatures as
low as 5° F.
